Digital Color Analyzer

Get a Price/Quote

Digital Color Analyzer Specification

Test Range
0100 (arbitrary scale depending on color model)

Number of Specimens
Single or Multiple (as per software)

Humidity
085% RH (non-condensing)

Display Type
Digital LCD

Specimen Size
Minimum 8 mm aperture

Equipment Type
Portable Digital Color Analyzer

Measuring Range
L*a*b*, RGB, XYZ, and other color spaces

Automation Grade
Automatic

Frequency
50/60 Hz

Mounting Type
Handheld/Benchtop

Accuracy
E < 0.08

Features
Portable, USB interface, Software support, High accuracy

Port Size
Standard USB Port

Interface Type
USB, RS232

Power Supply
AC 220V, 50Hz

Temperature
10C40C

Operating Voltage
220V AC or 6V DC (Battery)

Application
Color Measurement, Quality Control

Response Time
Less than 2 seconds

Resolution
0.01

Usage
Color Analysis, Quality Assurance, Research

Machine Weight
2.5 kg

Test Speed
Instantaneous

Test Width
No Limit

Control Mode
Digital/Automatic

Instrument Dimensions
180 mm x 70 mm x 100 mm

Data Storage
Internal memory up to 1000 readings

Software Compatibility
Windows 7/8/10 compatible

Operating Time (Battery)
Up to 8 hours

Light Source
D65, A, F11 selectable (integrated illuminator)

Power Consumption
< 5W

Sensor Type
Photodiode array

Calibration Method
White tile calibration with included reference

About Digital Color Analyzer

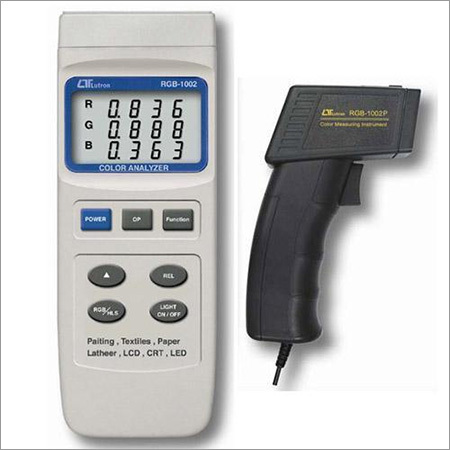

DIGITAL COLOR ANALYZER

RGB-1002, COLOR ANALYZER

RGB (Red / Green / Blue) / HSL (Hue / Saturation /Luminance) value,

No lighting color analysis (Textile, Leather, Paper etc.).

The modem accurate microprocessor technology uses the spectral analysis method
to determine the color of the sample.

Excellent repeatability due to spectroscopic analysis technique used.

Friendly operation, just press the operation button will get the
color value (R, G, B or H, S, L).

SPECIFICATION - Measuring Geometry : 45 Deg / 0 Deg circular illumination at 45 Deg,
measurement at 0 Deg.

Spectral range : 400nm 700nm.

Light Source : Two white LED lamp.

Color Sensor : 3 Color (RGB) transistor.

Measurement - RGB value : 0 1023. HSL value : 0 ~ 1.000.

Repeatability - RGB value : <3. HSL Value : < 0.01.

Computer Interface.

Integrated Multi-Light Source Capability

This color analyzer comes equipped with selectable illuminatorsD65, A, and F11so users can measure color under varied lighting conditions. It delivers consistent results regardless of the source, simulating daylight, incandescent, and fluorescent environments reliably for quality assurance purposes.

High Accuracy and Fast Operation

Utilizing a photodiode array sensor, the device delivers readings with accuracy better than E < 0.08 and processes results in under two seconds. The instruments digital LCD display ensures clear data interpretation, while its wide test width supports diverse sample sizes without limitation.

Flexible and Portable Design

The instruments compact structure (180 x 70 x 100 mm) and lightweight (2.5 kg) build support both handheld and benchtop use. Its internal battery provides up to 8 hours of continuous operation, making it suitable for fieldwork, laboratory, or manufacturing environments.

FAQs of Digital Color Analyzer:

Q: How does the digital color analyzer achieve accurate color measurement?

A: The analyzer utilizes a photodiode array sensor and integrated selectable illuminators (D65, A, F11), enabling precise color measurement across various environments. It employs white tile calibration with an included reference tile to maintain accuracy, achieving a margin of error less than E < 0.08.

Q: What is the process for calibrating the device before use?

A: Calibration is performed using the provided white tile reference. The device guides the user through the procedure, which ensures reliable and accurate readings. This process is required before new measurement sessions and is straightforward, taking only a few moments.

Q: Where can this color analyzer be used effectively?

A: This analyzers portable design and battery operation make it suitable for laboratory, manufacturing lines, field surveys, and research environments. It functions well in any setting requiring precise color analysis and can operate within 10C40C and 085% RH (non-condensing).

Q: What types of color spaces and measurement ranges does the equipment support?

A: The device measures L*a*b*, RGB, XYZ, and additional color spaces within a test range of 0100 on its arbitrary scale. It is versatile enough to handle single or multiple specimens (as per software capability), catering to a broad spectrum of applications.

Q: How is data stored and exported from the color analyzer?

A: Up to 1000 readings can be stored in the devices internal memory. Data can be exported to a PC using the standard USB port or RS232 interface. It is compatible with Windows 7, 8, and 10 operating systems via dedicated software for further analysis or reporting.

Q: What are the benefits of using a digital, automatic control mode in color analysis?

A: Digital and automatic control modes streamline the measurement process, reduce manual errors, and ensure consistent results. Users benefit from quick operation, instantaneous test speed, and automated specimen measurement, improving workflow and reliability in quality assurance tasks.
