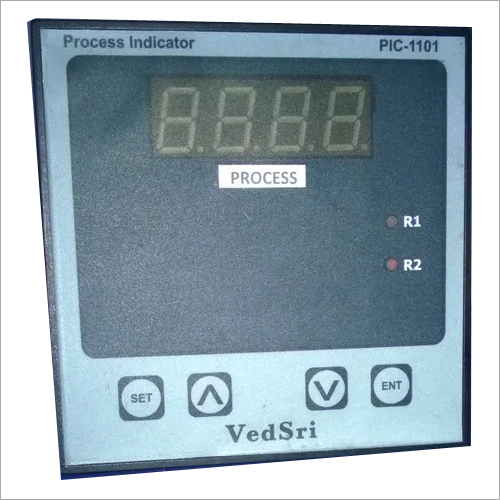

Process Indicator

Get a Price/Quote

MOQ : 1 , , Piece

Process Indicator Specification

Pressure
Up to 10 Bar

Connection
Terminal Block

Accuracy
0.5% of F.S.

Function
Displays process values such as pressure, temperature, flow, or level

Size
48 mm x 96 mm

Input Signal
4-20 mA, 0-10 V, RTD, Thermocouple

Alarm Function
High/Low Programmable

Mounting Type
Panel Mount

Power Supply
220V AC, 50/60 Hz

Output
Relay/SSR Output Optional

Response Time
<300 ms

Enclosure
ABS Plastic

Display Type
4 Digit LED Display

Operating Temperature
0°C to 55°C

Process Indicator Trade Information

Minimum Order Quantity
1 , , Piece

Delivery Time
Days

Sample Available
Yes

Main Domestic Market
All India

About Process Indicator

Supported by rich expertise of 19 years, we are betrothed in manufacturing and supplying wide assortment of Process Indicator. To manufacture the offered indicator as per set industry norms, our professionals use supreme quality components and advanced techniques. The provided indicator is used for displaying the readings which is to be measured in various labs as well as electrical industry. In addition to this, our esteemed patrons can easily avail the provided Process Indicator from us at rock bottom rates.

Features:

Accurate dimension
Excellent working
Flawless finish
Easy to use

Versatile Input Compatibility

The process indicator supports an array of input signals, such as 4-20 mA, 0-10 V, RTD, and thermocouple, making it suitable for diverse industrial applications. This flexibility enables you to monitor various process values accurately and efficiently in a single device.

Swift Response and Precision

Engineered with a response time of under 300 ms and offering accuracy of 0.5% of full scale, the indicator ensures timely and exact display of real-time process variables. This precision meets the demands of critical process monitoring.

User-Friendly Panel Mount Design

With panel mounting and a clear 4-digit LED display, this process indicator fits seamlessly into control panels, providing operators with quick process feedback. Its compact size and ABS enclosure also promote easy installation and operational stability.

FAQs of Process Indicator:

Q: How do I install the process indicator panel in my control system?

A: The device is designed for panel mounting, with dimensions of 48 mm x 96 mm. Simply fit the indicator into the pre-cut panel slot and secure it using the provided mounting brackets. Electrical connections can be made via the terminal block on the rear.

Q: What input signals can this indicator accept?

A: This process indicator can receive various standard input signals, including 4-20 mA, 0-10 V, RTD, and thermocouple. This allows it to accommodate sensors and transmitters monitoring pressure, temperature, flow, or level within your system.

Q: When should I use the programmable high/low alarm feature?

A: Utilize the programmable high/low alarm function to trigger alerts when process values exceed or fall below pre-set thresholds. This feature is especially beneficial for ensuring safety and early detection of process deviations in industrial applications.

Q: Where can this product be used effectively?

A: The process indicator is suitable for industrial settings across India, particularly where monitoring of process variables such as pressure (up to 10 Bar), temperature, flow, or level is essential. It is typically used by manufacturers, distributors, and suppliers.

Q: What are the benefits of the relay/SSR output options?

A: Optional relay or SSR outputs allow direct interface with control circuits for process automation. This enables users to initiate actions like activating alarms, shutting down equipment, or controlling other devices based on process values.

Q: How does the ABS plastic enclosure contribute to the devices usage?

A: The robust ABS plastic enclosure protects internal circuitry against dust and minor impacts. This enhances durability and extends operational life, particularly in demanding industrial environments with moderate ambient conditions (0C to 55C).

Q: What is the expected accuracy and response speed of this process indicator?

A: The device offers an accuracy of 0.5% of full scale and a rapid response time of less than 300 ms, ensuring real-time display and control of your monitored process variables.
